high quality metal cutting machine hotels cnc cutting machine water jet price

1 Set
MOQ
$36,500.00(>=1 Sets)
価格
high quality metal cutting machine hotels cnc cutting machine water jet price
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Condition: New
Table Travel (X) (mm): 2000
Table Travel (Y) (mm): 1500
Table Travel (Z) (mm): 150
Number of Axes: 3
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Cutting Accuracy(mm): 0.1
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Voltage: 420MPA
Rated Power: 37KW
Dimension(L*W*H): 2000MM*1500MM
Year: 2021
Warranty: 1 Year
Weight (KG): 5000 KG
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Bevera
Key Selling Points: Easy to Operate
Showroom Location: None
Type: Water Jet Cutters
Product name: Water Jet Cutting Machine
Cutting Accuracy: ±0.1mm
Structure: Oil immersion
Machine Cover: Stainless Steel
Main Motor: SIEMENS Motor
Intersifier: ACCUSTREAM(USA)
Rail Screw: HIWIN
Servo Motor: Yaskawa
Control system: CNC Controller
基本情報
お支払配送条件
Packaging Details: Flexible packaging. Can be customized according to customer needs.
Supply Ability: 30 Set/Sets per Month
製品の説明

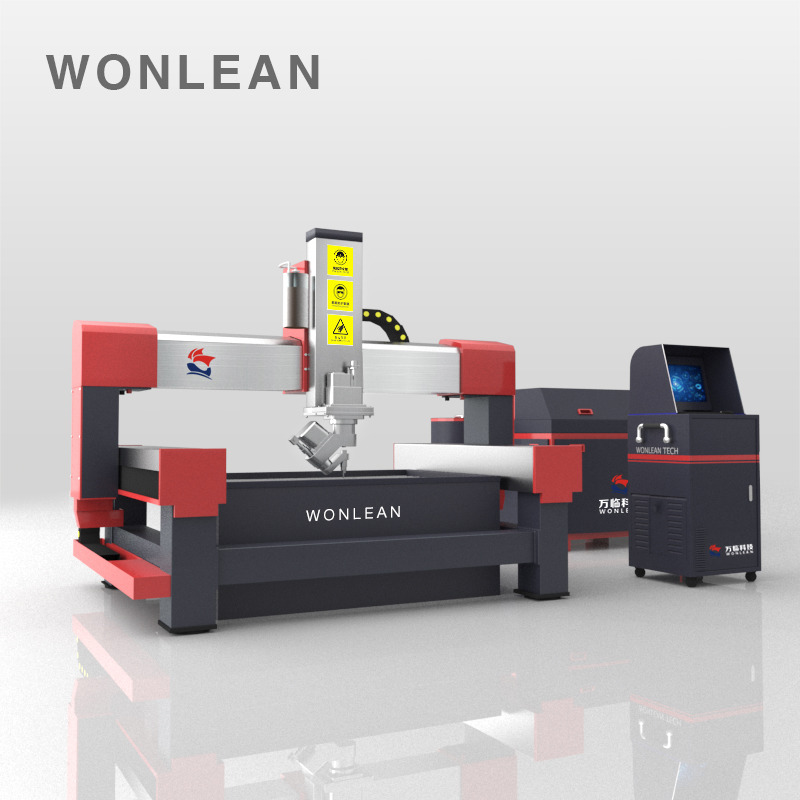

Waterjet Cutting Machine for glass, metal, stone and rubber, plastic, etc.
Product Description
15 Years Experience

CNC WATERJET
CUTTING MACHINE

✔Support non-standard customization
✔Provide free sample trial cutting service for you

15 years of practice creates classic

WONLEAN new generation water jet cutting machine
√All cast iron bed √Oil-immersed structure
√Automatic variable pump √Fully intelligent system
Oil-immersed structure
The guide screw is completely immersed in the oil tank, which can fully lubricate and prevent the wear of the transmission system from the splashing of abrasive and water. And it has high cutting accuracy, but also greatly improves the service life of the equipment, and solves the serious accuracy attenuation problem of water jet cutter in the past, and the cutting is accurate at any time
Concrete casting bed
After finite element analysis, the bed is welded in one body by making full use of the optimum stress point and supporting structure. After the aging treatment, concrete is poured into the bed body, which has strong stability and excellent shock absorption, greatly reduces the stress of the machine bed and maintains the long-term guarantee of accuracy


Split structure
There is no connection point between the bed and the water tank of the cutting table, and it adopts a fully split structure, which avoids the associated deformation of the bed due to the deformation of the water tank after long-term use, and ensures the accuracy and service life of the bed


Stainless steel body
The X,Y,Z axis adopts double sealing design, with external high-quality stainless steel brushed shell and high-quality dust-proof folding cloth, which can provide effective hard protection and full sealing for the equipment, and is the most effective sealing form of waterjet cutter at present
Direct connection transmission system
The high-power servo motor is directly connected with the large-diameter guide screw. Compared with the traditional synchronous pulley belt connection, it has less transmission loss, higher precision, better stability. High accuracy without the slightest error
Intelligent variable pressurization system
Equipped with a variable oil pump and an intelligent variable high pressure system composed of four imported valve bodies, which can intelligently adjust the amount of oil according to the pressure requirements and has high cutting efficiency, better oil temperature control and more energy-saving, so that each pressurization is just right
Intelligent 3D cutting
It can achieve fixed and variable angle 3D cutting within 75 degrees. The cutting head mechanism is made of aluminum alloy, with light weight, high strength and small load. The offset of the cutting position under the reaction of 380Mpa high pressure water is
less than 0.01 mm, and the cutting accuracy is extremely high


Tilting compensation system
Through the dynamic compensation of the intelligent five axis software and two Japanese Yaskawa servo motors, the "V"shaped incision of the waterjet is accurately compensated to make the cutting incision vertical up and down or achieve bevel cutting
within 8 degrees



Wireless remote control handle everything under control
More flexible and convenient for tool setting Control equipment operation at any time Display feed values in real time
Magnetic design for easy access
Intelligent identification and one-touch processing
Identify CAD E-drawings, automatically generate cutting path and access parameters, reduce manual coding and repeated operations, simple operation, improve production capacity
The main components adopt internationally renowned brands
World-leading quality accomplishes the WONLEAN classic
High pressure system specifications
Model
WL30018Z
WL38030Z
WL42037Z
Max. Pressure
300Mpa
380Mpa
420Mpa
Continuous working pressure
260Mpa
340Mpa
380Mpa
Power
18KW
30KW
37KW
Maximum water flow
3.7L/min
3.7L/min
3.7L/min
Maximum nozzle diameter
0.33mm
0.33mm
0.33mm
Working power supply
380V/50HZ


Technical parameters of gantry cutting platform
Model
WL2015BA
WL2030BA
WL3020BA
WL2040BA
WL2060BA
WL3060BA
X axis
2000mm
2000mm
3000mm
2000mm
2000mm
3000mm
Y axis
1500mm
3000mm
2000mm
4000mm
6000mm
6000mm
Z axis
150mm
150mm
150mm
150mm
150mm
150mm
Running speed
9000mm/min
Cutting accuracy
±0.1mm
control precision
±0.01mm
Repeat accuracy
±0.05mm
Product Advantages:
1.Cutting accuracy is up to 0.1mm.
2.The main core components of Intensifier is made in USA.
3.The guide screw with oil-immersed structure different from the traditional dry structure. The linear guide rail and ball screw are immersed in the oil tank ,which can fully lubricate the guide screw and further isolate the water and abrasive,so as to maintain the cutting accuracy.
4.The high-power servo motor and the guide screw are connected directly by flexible coupling, which eliminates the gap of traditional belt connection and improves the cutting precision.
Why Choose Us
Company Profile
ABOUT US
Liaoning Wonlean Technology Co., Ltd. is a high-tech enterprise specializing in the development and application of ultra-high pressure water jet technology. Our products have won all praise from our customers by advanced technology and reliable performance. In the production line of Wonlean, we have a variety of advanced mechanical processing equipment and more than 100 people with rich experience in professional production team. Wonlean Technology will be your side of the water cutting experts and we will provide you with professional waterjet cutting solutions.
Service
Packing and Delivery
Delivery Time
30days
Payment Term
T/T,30% in advance ,70% before shipment(negotiable)
Packaging details
Normal packaging is container. We can also according to the special requirements of customers for packaging
port
Dalian
Validity
45 days from the date we offered validity
FAQ
Q: What is the advantage of water jet cutting machine?
A :Cold processing, no heat reaction zone. no deformation; strong cutting ability, pure water jet can cut soft materials, abrasive waterjet can cut hard materials; can cut flammable and explosive objects; cutting precision is high, edge is neat no secondary processing is required. Waterjet also has the title of universal cutting machine.
Q: How to choose the cutting table?
A:You need to offer the size of the materials you want to process or the size of the cutting table.
Q:How to solve the incision problem of water cutting?
A:It is not a vertical cutting for a waterjet cutter. This is due to the physical characteristics of waterjet. If it is required precise vertical angle cutting, we will provide you with a five-axis dynamic cutting system.
Q:Is the equipment easy to operate?
A:Wonlean intelligent waterjet cutting machine is easy to operate. You could upload the electronic images file of DXF format to the operating system via USB or network. The system will automatically program, and only need to set a few simple parameters, it can automatically complete the cutting operation.

Application and advantages of waterjet cutting:

Waterjet Cutting Machine is an effective tool for any shape of artistic creation. The traditional cutting method is saw cutting only in a row. When cutting the curves, the model should be made according to the size and then polished. Waterjet Cutting Machine can cut any shape of models under the control of the CNC program. 1. Smooth cutting quality is perfect. 2.The cutting accuracy of waterjet cutter is up to 0.1mm. Edge joints are regular, and water jet cutting can also make very complex puzzles and murals. 3. Cutting speed is fast, and product consistency and interchangeability are very good. 4. Drilling, cutting and forming can be done at once. 5. Improve the working environment and reduce the impact of dust and noise on the operator. 6. Waterjet cutting is a cold cutting that does not damage the internal structure of the material. 7. It is the only machine for processing composite materials and fragile porcelain. 8. Waterjet Cutter can cut metal, rubber, foam, plastic, composite materials, stone, ceramic tile, marble, glass, etc.

Description of five-axis :

The AB 5-axis water jet cutter is a solution for small angle bevel cutting in stone industry and metal high-precision vertical cutting. The cross structure of the two axis is sensitive in response and fast in motion. It can realize plane 3D cutting less than 8°, and all of the path programming and angle change are completed intelligently and automatically which is convenient and quick and has a very high cost performance ratio.

The AC five-axis water jet cutter is a professional solution for large angle bevel cutting, continuous change of cutting angle and high precision cutting. The larger thermal stiffness structure and precise transmission system make the dynamic error less than or equal to plus or minus 0.05mm. With automatic programming and intelligent dynamic differential compensation, more complex plane 3D cutting can be achieved.
